Environment

Install all software needed to run the project.

info
  • This guide assumes you are using macOS.
  • When seeing this character ~ at the start of the line, you should read it as the expected outcome of the command you should run.

Installing Xcode​

Install Xcode from the AppStore or Apple Developer.

Installing Android Studio​

Install using brew

brew install android-studio

or download from Android Developer.

Installing Java​

For running Android apps you need Java. We recommend using the Java version that comes with Android Studio.

We will add the path to Java binaries to the ~/.zshrc file. To do it run:

echo 'export PATH="/Applications/Android Studio.app/Contents/jbr/Contents/Home/bin:$PATH"' >> ~/.zshrc
source ~/.zshrc

Validate that Java is working by running:

java --version

You should see something like this:

~ openjdk version "17.0.9" 2023-10-17
~ OpenJDK Runtime Environment Homebrew (build 17.0.9+0)
~ OpenJDK 64-Bit Server VM Homebrew (build 17.0.9+0, mixed mode, sharing)

Also confirm the path to Java executable is associated with Android Studio

which java

You should see something like this:

~ /Applications/Android Studio.app/Contents/jbr/Contents/Home/bin/java

Now we need to link the place where Xcode tries to find Java to the one we just installed. To do it run:

sudo ln -sfn /Applications/Android\ Studio.app/Contents/jbr /Library/Java/JavaVirtualMachines/jbr
warning

Avoid installing Java with brew to prevent issues with different version of Java when working within Android Studio and Xcode

Install Kotlin Multiplatform Plugin in Android Studio​

Open Android Studio and navigate to Settings/Plugins. Search and install the Kotlin Multiplatform plugin. Make sure you do this before ever opening the project to avoid issues with Gradle caches for ObjC bridged frameworks.

Congratulations, you are ready to start!​

tip

You can use Kdoctor to confirm your Environment is correctly configured.

Ignore the warning CocoaPods is not installed, it is not needed for MobileStack

Setup the repository​

Jump to Manual Setup if you want to manually setup the repository.

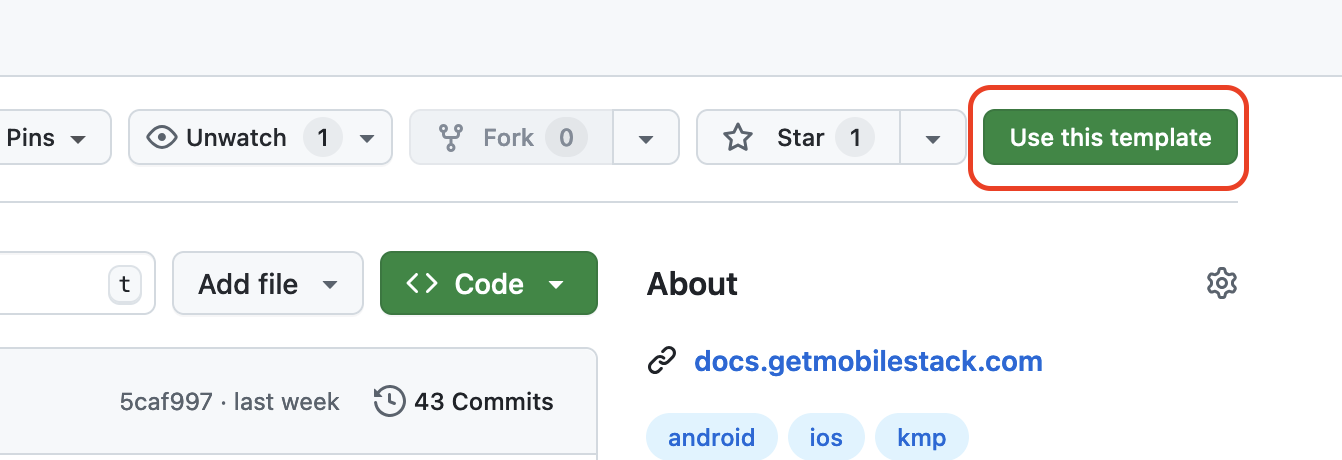

Go to MobileStack Github Template and click on Use this template button.

Add your repository name, make sure your user is the destination and that Private visibility is selected. Then click on Create repository from template.

Once created, you have to clone the repository to your local machine.

git clone [YOUR_REPOSITORY_URL]

Via Manual Setup (skip if used Github Template)​

Make sure you have an empty repository created for your app in advance.

GitHub requires a credentials manager to clone via HTTPS. Make sure you have it configured before running the following commands.

Replace [YOUR_APP_FOLDER_NAME] with your app name in the following commands:

git clone https://github.com/GetMobileStack/mobile-stack-kmp.git [YOUR_APP_FOLDER_NAME]
cd [YOUR_APP_FOLDER_NAME]
git remote remove origin
git remote add origin [YOUR_GIT_REPOSITORY]

Now commit all the changes and push them to your repository.

git add .
git commit -m "Initial commit"
git push -u origin main

Setup future updates (optional)​

git remote add upstream https://github.com/GetMobileStack/mobile-stack-kmp.git
git remote set-url --push upstream no_push

Whenever you want to pull the latest MobileStack changes, run:

git pull upstream main
danger

Carefully merge the changes if you have made any local changes to MobileStack files.

warning

Make sure you installed the Kotlin Multiplatform plugin in Android Studio before opening the project. eg. without opening the project go to File -> Settings -> Plugins -> Marketplace -> Search for Kotlin Multiplatform and install it.
